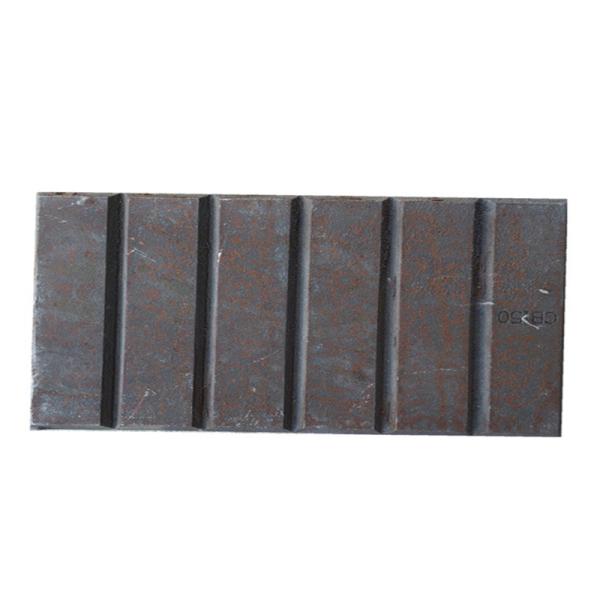

Description of Chocky Bars
Easy to use with no excessive cutting when compared to sheets or plates, Chocky bars can be formed onto inside or outside contoured surfaces to provide an extra level of protection for wear and impact applications.
Used for a variety of wear protection on buckets, excavators, dragline machines or for lining chutes and rock box edges Chocky Bars can be used in conjunction with other wear products to give you that extra advantage.
Applications:
- Bucket wear strips.
- Replaces hard facing for augers, directional drill heads, foundation drilling, raise bore drilling.
- Fan blade liners.
- Pugmill paddles, tip and scrapers.
- Recycling industry.
- Road planer skids and pick protectors.
- Replaces hard facing for pump housings and impellors.
Product Dimensions
| Part No | Type | Size(mm) | Dimensions(mm) | Unit Weight(kgs) |
| | | | A | B | C | D | E | |
| CB25A | A | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB25B | B | 240*25*23 | 240 | 25 | 15 | 8 | 23 | 0.9 |
| CB40A | A | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB40B | B | 240*40*23 | 240 | 40 | 15 | 8 | 23 | 1.5 |
| CB50A | A | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB50B | B | 240*50*23 | 240 | 50 | 15 | 8 | 23 | 1.9 |
| CB65A | A | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB65B | B | 240*65*23 | 240 | 65 | 15 | 8 | 23 | 2.5 |
| CB80A | A | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB80B | B | 240*80*23 | 240 | 80 | 15 | 8 | 23 | 3.2 |
| CB90A | A | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB90B | B | 240*90*23 | 240 | 90 | 15 | 8 | 23 | 3.5 |
| CB100A | A | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB100B | B | 240*100*23 | 240 | 100 | 15 | 8 | 23 | 3.9 |
| CB130A | A | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB130B | B | 240*130*23 | 240 | 130 | 15 | 8 | 23 | 5.2 |
| CB150A | A | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
| CB150B | B | 240*150*23 | 240 | 150 | 15 | 8 | 23 | 7.3 |
Product Drawing
VIBO Wear is a professional manufacturer of bimetallic composites and dozer blade, which focuses on wear solutions. VIBO factory covers 30000 square meters, and owns complete state-of-the art production line with capacity of 2000tons bimetallic wear parts and 6000tons dozer blade. Attributed to strong R & D ability, high quality and good service, VIBO sproducts have been widely distributed throughout America, Chile, Brazil, Australia, Canada, Russia, South Africa, as well as many other countries and areas. If you are looking for high quality wear-resistant parts,please feel free to contact us with any query, we are ready at your service at any time.
In order to ensure wear parts quality,VIBO executes strict quality control procedure in each step of producing. Before shipment,VIBO all products must pass checking at least including chemical, hardness, strength, ultrasonic, microstructure, visual and inspection report will be submitted to customer at the same time.
VIBO commit to replace defective goods 100%.
